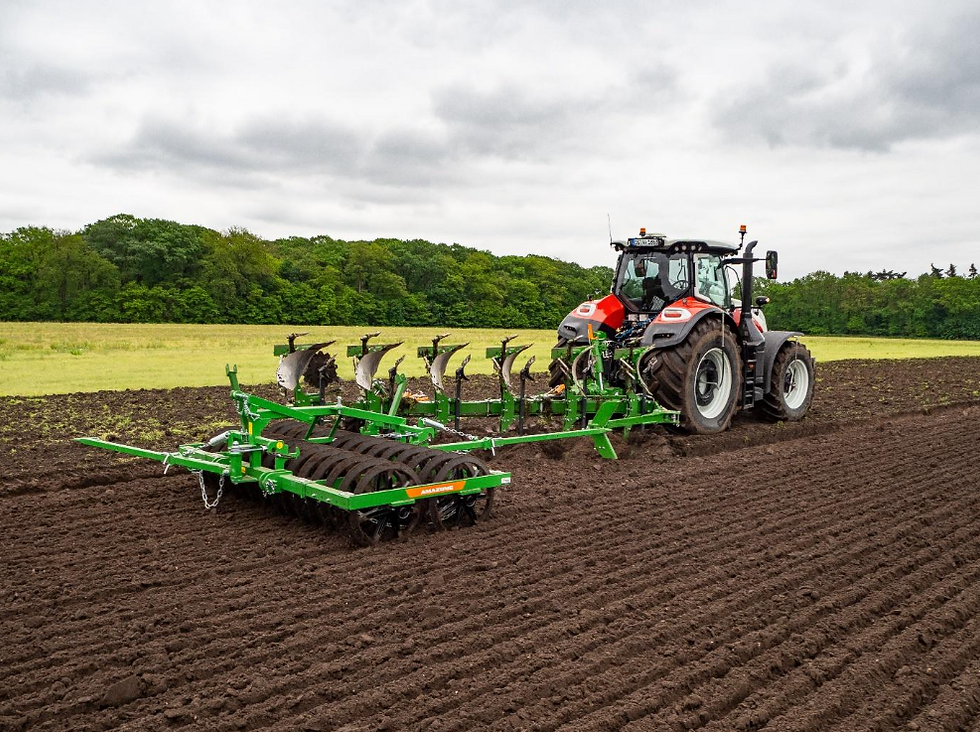

The new Amazone Teres 300 Onland mounted reversible plough
Greater flexibility when ploughing with high-performance tractors
AMAZONE is now offering the Teres 300 mounted reversible plough with on-land ploughing capability. The new model enables operators to switch quickly and easily between conventional in-furrow and on-land ploughing, providing greater flexibility across a range of field and soil conditions. Available in five- or six-furrow configurations, the new Teres 300 models are designed for use with tractors of up to 300 hp.
On-land ploughing for soil-friendly and efficient operation
On-land ploughing offers particular advantages for tractors fitted with wider tyres or tracks. Large tyres often have limited space in the furrow and can cause compaction by travelling over loosened soil. Operating outside the furrow reduces ground pressure and helps preserve soil structure.
At the same time, water infiltration and soil aeration are improved, creating favourable conditions for root development. Modern GPS guidance systems also support accurate and efficient operation.
Precise and convenient adjustment from the cab

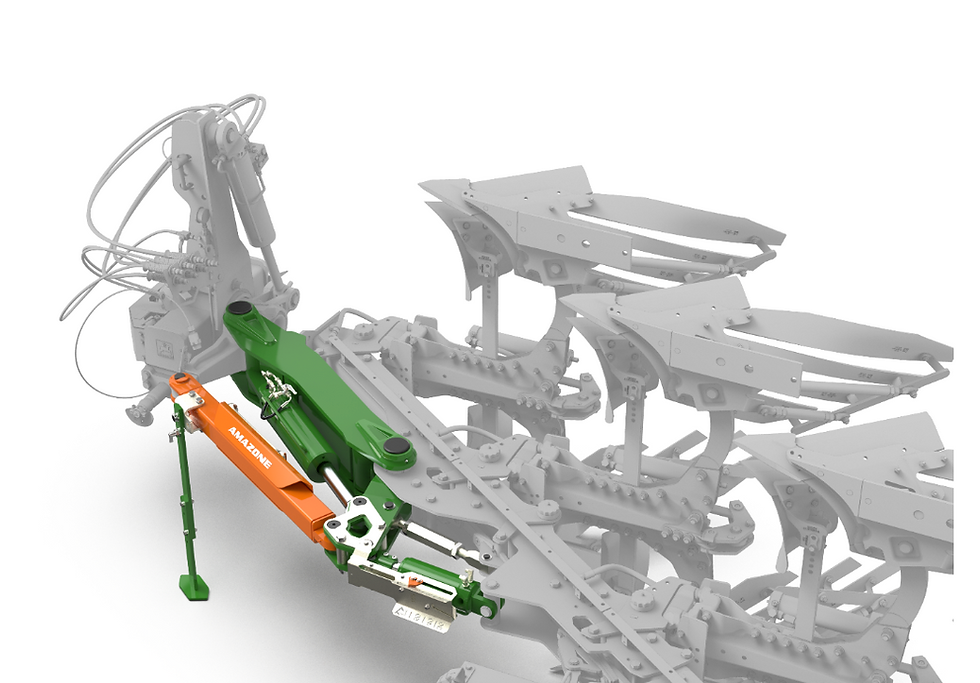

Switching between in-furrow and on-land operation can be carried out easily from the cab via the parallelogram adjustment centre. Furrow width and front furrow settings can also be adjusted hydraulically, enabling the plough to be adapted quickly and easily to changing field conditions.
Another feature is the AutoAdapt automatic front furrow adjustment system. This ensures a clean match from bout to bout, even when the overall furrow width is adjusted, helping to maintain a consistent finish across the field.
SpeedBlade plough bodies for reduced wear
A key feature of the Teres 300 Onland is the SpeedBlade plough body, which incorporates a patented extra-large front shin positioned ahead of the mouldboard. Even at higher working speeds, the main wear point is concentrated on this enlarged front shin rather than the main section of the slatted or solid mouldboard. As a result, only the worn front shin typically needs to be replaced initially, helping to reduce maintenance requirements and wear costs compared with conventional plough bodies.
Robust design and advanced engineering

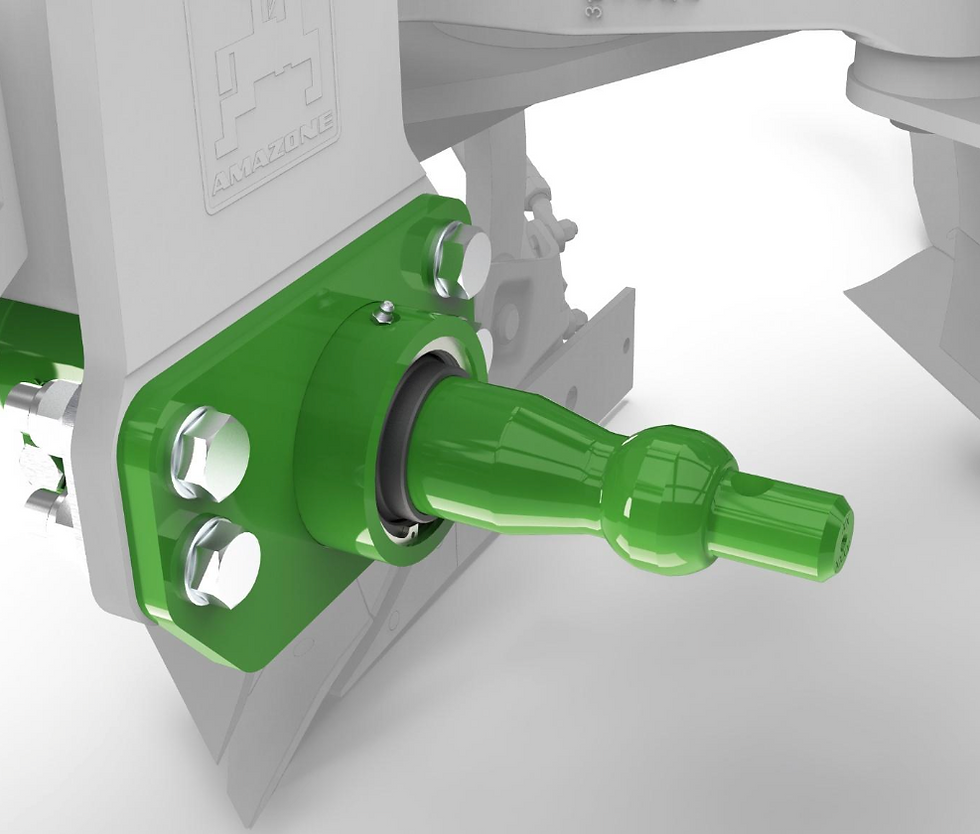

The Teres 300 Onland features a robust beam measuring 150 × 150 × 8.8 mm, combining high strength with a comparatively low overall weight. The bearing-mounted ProtectShaft cross-shaft, with integrated lower-link balls, is designed for low wear and long service life. Its pivot bearings also provide a damping effect, helping to protect the plough during headland turns and when travelling on the road.
Many ploughs require the furrow width to be reduced before turning when operating at wider working widths in order to maintain adequate ground clearance. In contrast, the Teres is swivelled out via the front furrow cylinder before the turning process begins. This allows the selected furrow width to be maintained while reducing wear on key plough components.
Depending on operating conditions and requirements, overload protection can be provided either mechanically via a shear bolt or hydraulically. In the hydraulic version, the release force can be adjusted easily to suit conditions. Once an obstacle has been passed, the plough body automatically returns to its working position.
The advantages at a glance:
Easy changeover between on-land and in-furrow modes
Greater efficiency through high working speeds and reduced wear, thanks to the SpeedBlade plough body and ©plus hardening process
Automatic front furrow adjustment with the AutoAdapt system ensures perfect alignment with the last furrow, even when furrow width is changed
Simple front furrow adjustment with infinitely variable hydraulic control
Faster headland turning with reduced stress on the machine, without changing furrow width
ProtectShaft cross shaft mounted in bearings with integrated ball bearings
